Sandwich panel is a composite panel consisting of two skins and a Polyisocyanurate (PIR) core. The exposed outer skin is roll formed from steel or aluminium coils, where the inner skin is made up of the same material in addition to a Fiber Reinforced Liner (FRL) option.
The continual production process on double conveyor-belt adopted by BCOMS is considered as the most innovative process for sandwich panels, ensures the best mechanical properties of the insolent due to the strong adhesion of the foaming reaction mixture to both layers of the panel under the influence of heat and free-rise foaming pressure in addition to a considerably higher bending resistance.
Sandwich Panel Features & Colors
Chemical and biological resistance
01
Cold and heat resistant
02
Cost-efficient processing
03
Dimensional stability
04
Environment friendly
05
Excellent thermal insulating properties
06
Fast and easy to install
07
High intensity and large rigidity
08
Light weight and durable
09
Nice aesthetic features
10
Non-water absorbent
11
BCOMS panels are readily available in below listed standard colors.
Composite panel consisting of two skins and a Polyisocyanurate (PIR) core
The outer and inner skins, in case of steel and aluminium coils, are available in different profiles, thickness, coatings and colours to suit the different requirements and exposure conditions in addition to the aesthetic look of the building. The core consists of sprayed Polyisocyanurate (PIR) foam, BCOMS can supply panels Class 1 according to ASTM E84, FM 4880, FM 4881 & FM 4471 with N-Pentane blowing agent.
BCOMS Polyisocyanurate (PIR) Sandwich panels are categorized in two types:

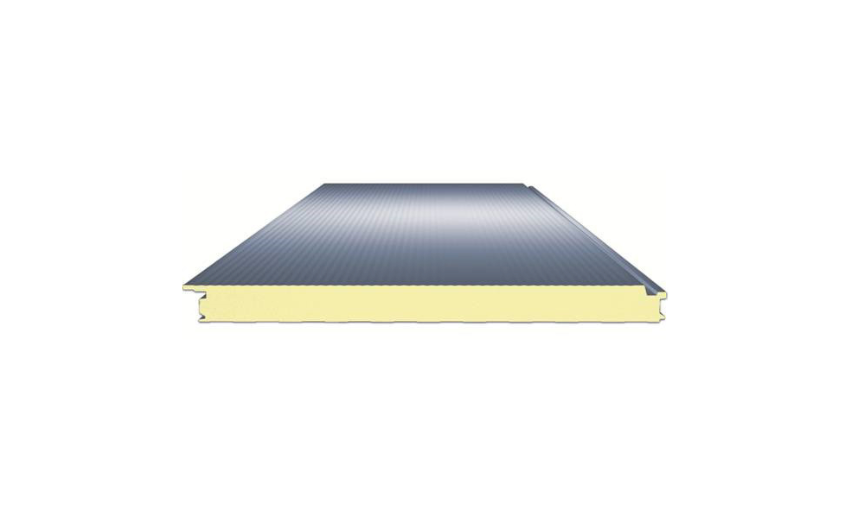

Tempcon Sandwich Panel (TCSQ)
Tempcon sandwich panels (TCSQ) that are produced using rigid Polyisocyanurate (PIR) foam core with external and internal sheet in steel or aluminum and profile of outer skin is Type-S1 & profile of inner skin is Type-Q. TCSQ panels are suitable for roof and wall of all building applications.
Dimensions & Thicknesses
Tempcon sandwich panel is available in a single outer profile type in both steel and aluminium in combination of the below listed inner skin types; the insulating core can be produced in various thicknesses and thermal insulation values.
Thermal Properties
The U-Values in the above table is measured at 25 oC and thermal conductivity of K= 0.022 KW/m oK
Temparch Sandwich Panel (TCSQ)
Temparch sandwich panels (TCSQ) that are produced using rigid Polyisocyanurate (PIR) foam core with external and internal sheet in steel or aluminum and profile of outer skin is Type-S1 & profile of inner skin is Type-Q.
Dimensions & Thicknesses
Note: * - This thickness is available for TEMPARCH Wall Panel with Fiber Reinforced Liner only
Thermal Properties
The U-Values in the above table is measured at 25oC and thermal conductivity of K=0.022 KW/m oK

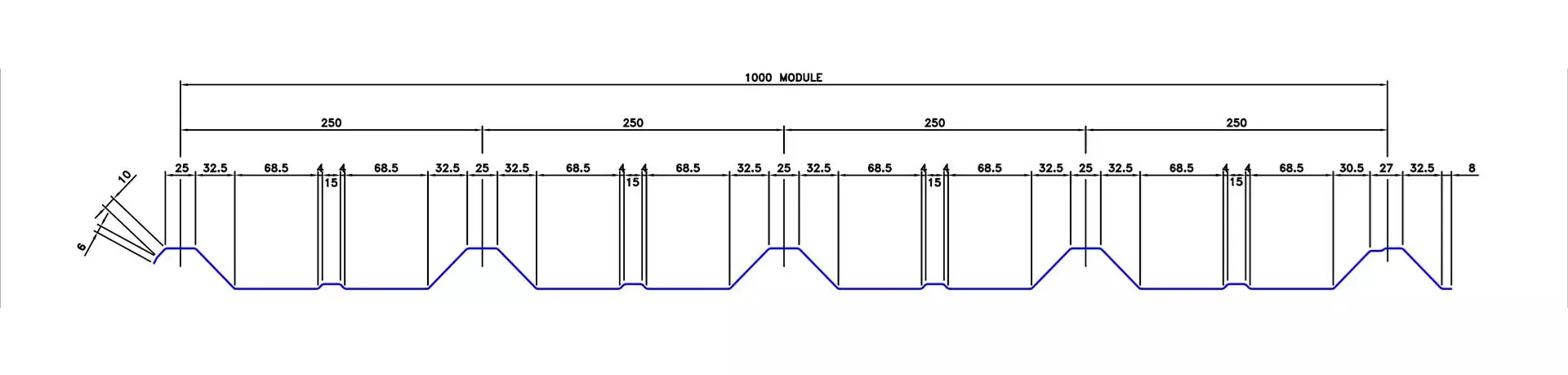

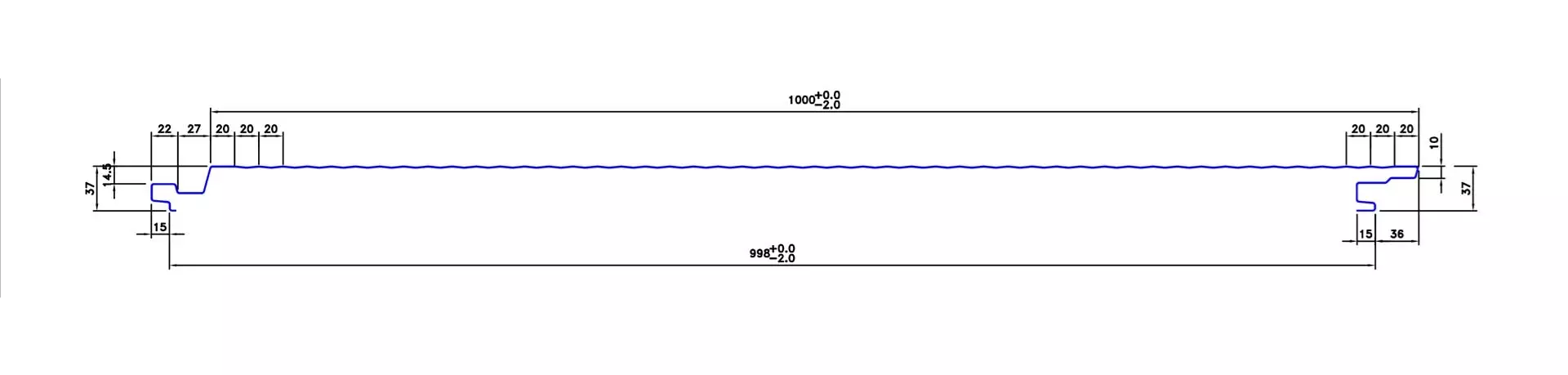

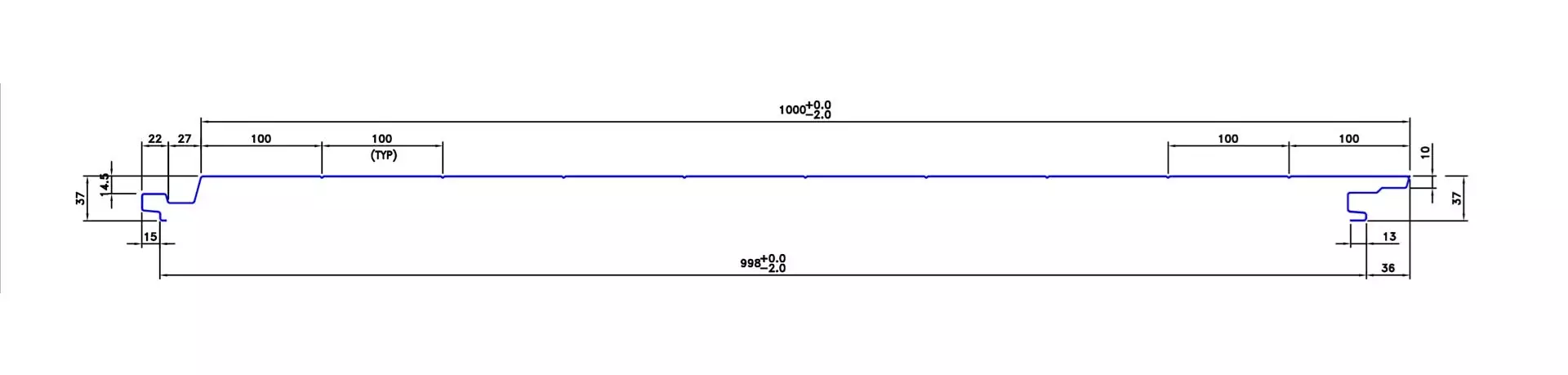

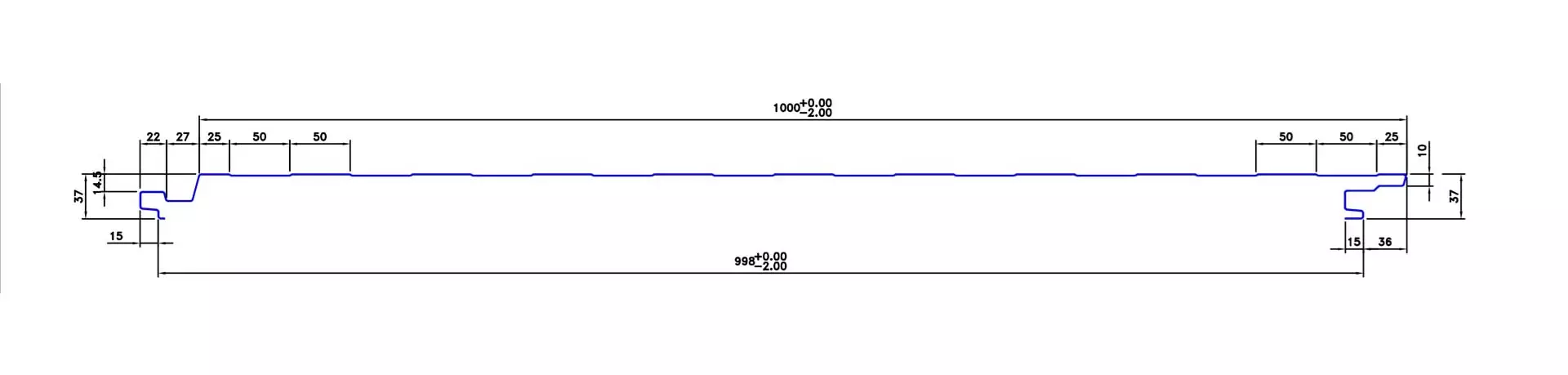

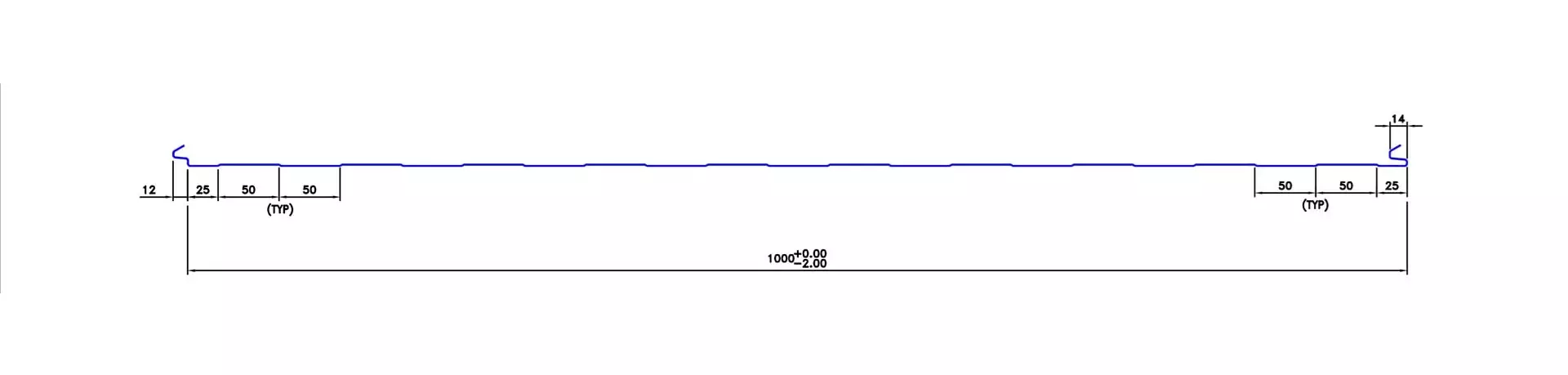

Panel Profiles
BCOMS sandwich panels can be supplied in following profiles
